What Makes a U Drill Essential for Efficient Hole-Making?

In the world of metalworking and machining, creating accurate, efficient holes in materials is a fundamental task, and it requires the right tools. Among these, the U Drill has become a popular choice for professionals and enthusiasts alike. But what is it about the U Drill that makes it stand out? Let’s dive into the features, benefits, and applications of the U Drill to understand why it’s such an essential tool in hole-making.

1. What Exactly is a U Drill?

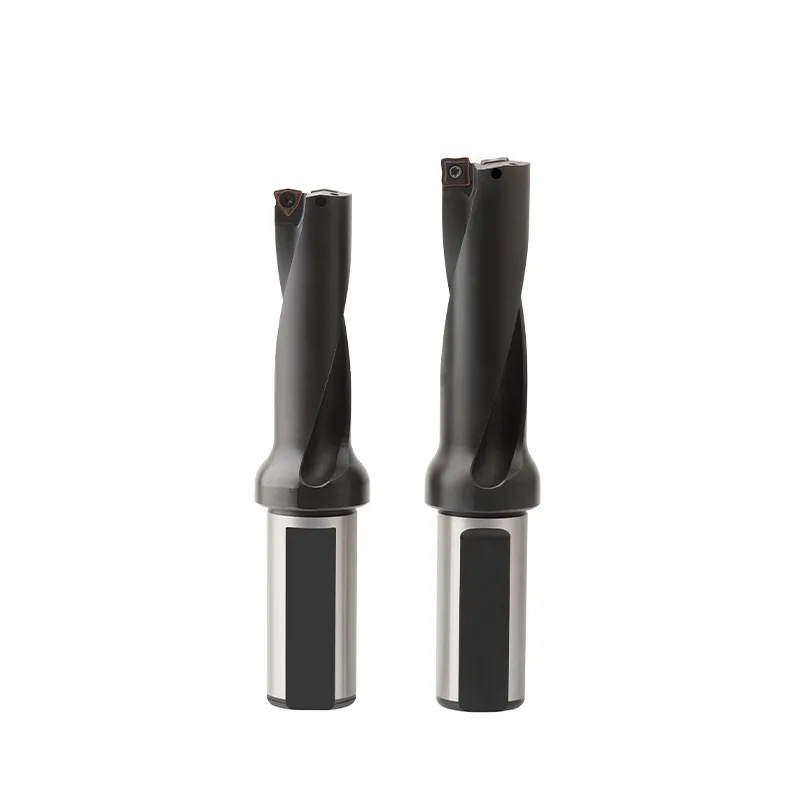

A U Drill, also known as a Universal Drill, is a type of indexable drill specifically designed for high-speed hole-making in a variety of materials. It typically features a solid, robust body with replaceable carbide inserts, allowing it to drill through hard metals efficiently and accurately. The “U” in U Drill often signifies its universal application, as it can handle different materials and is adaptable to a range of machining setups.

Unlike traditional twist drills, U Drills do not need to be pre-drilled or pilot holes, as they can start drilling directly. This makes them an excellent choice for fast, precise, and cost-effective hole-making in materials ranging from aluminum and stainless steel to cast iron and hardened steel.

2. How Does a U Drill Work?

The U Drill’s design allows for a unique cutting process that combines drilling and boring, using two cutting edges to balance the tool and create a high-quality hole. The drill’s carbide inserts are positioned to ensure even cutting pressure on both sides, reducing tool deflection and enhancing accuracy. These inserts are also replaceable, meaning that when they wear out, you don’t need to replace the entire drill—just the inserts. This is both cost-effective and convenient for ongoing machining processes.

Additionally, U Drills feature coolant channels that allow for efficient cooling, which helps prevent overheating and extends the life of both the drill and the inserts. This built-in coolant system also assists in chip evacuation, keeping the workpiece free from material buildup and ensuring a smoother drilling process.

3. What Are the Main Benefits of Using a U Drill?

The U Drill offers numerous advantages that make it a valuable tool in manufacturing and machining settings:

  - High Efficiency: U Drills are designed for high-speed operations, making them faster than conventional drilling tools. This efficiency allows for quicker cycle times, which can be crucial in high-volume production.

  - Precision and Stability: With carbide inserts and balanced cutting edges, U Drills maintain stability even under high-speed conditions. This precision is essential when working on high-tolerance projects where exact hole dimensions are required.

  - Cost Savings: The replaceable inserts mean you don’t need to buy a new drill every time an edge wears down. By simply replacing the worn inserts, you extend the tool’s life and save on equipment costs.

  - Versatility: The U Drill can be used on various materials, from softer metals to high-strength alloys. This adaptability makes it a go-to tool in machine shops with diverse material needs.

4. What Types of Projects Are Ideal for a U Drill?

U Drills are suitable for a range of projects, especially those requiring accurate and efficient hole-making in solid materials. They are commonly used in industries such as:

  - Automotive: From engine components to transmission housings, the automotive industry often requires high-precision holes in metal parts. The U Drill’s speed and accuracy are ideal for such applications.

  - Aerospace: Aerospace components need exact tolerances and robust materials, which the U Drill can handle efficiently. The tool’s versatility also makes it suitable for various aerospace alloys.

  - Heavy Machinery: In industries where large metal components are standard, U Drills are used for drilling large diameter holes quickly and efficiently, reducing cycle times in production.

  - Tool and Die Making: U Drills are also popular in tool and die manufacturing, where precision in hole-making is crucial to creating molds and dies for mass production.

5. How to Choose the Right U Drill for Your Needs?

Choosing the right U Drill depends on several factors, including the material you’ll be drilling, the desired hole size, and the depth of the hole. Here are a few considerations:

  - Insert Grade and Coating: Different carbide grades and coatings are suitable for different materials. For example, coated inserts may be more suitable for stainless steel, while uncoated inserts might work better on softer metals.

  - Hole Depth and Diameter: Ensure that the U Drill’s specifications match your project’s requirements for hole diameter and depth. U Drills come in various sizes, so select one that will allow efficient drilling without risking tool damage.

  - Machine Compatibility: Make sure the U Drill is compatible with your machine’s spindle size, speed, and coolant capabilities. Some machines may not support the high speeds or coolant flow that U Drills require for optimal performance.

6. What Are Some Tips for Maximizing U Drill Performance?

To get the best results from a U Drill, keep these tips in mind:

  - Use Proper Coolant: Coolant is essential for both tool longevity and effective chip evacuation. Ensure the U Drill’s coolant channels are clear and use the correct coolant flow for your material.

  - Monitor Feed and Speed: Each material requires different speeds and feeds for optimal drilling. Follow the manufacturer’s guidelines and adjust as necessary to avoid tool wear and overheating.

  - Replace Inserts Regularly: Replacing inserts when they show signs of wear will help maintain the drill’s accuracy and prevent damage to both the tool and the workpiece.

  - Check Alignment and Stability: Proper alignment and setup are essential for smooth and precise drilling. Ensure the drill is stable in its holder and properly aligned to avoid tool deflection.

In Conclusion

A U Drill is a versatile, efficient tool that can enhance productivity and accuracy in hole-making applications across various industries. With the right setup and maintenance, a U Drill can offer long-lasting performance, making it a valuable addition to any machining toolkit. Whether you’re in automotive, aerospace, or heavy machinery, understanding the benefits and best practices of U Drill usage can help you make the most of this powerful tool.
