Types of PV Connectors

A PV (Photovoltaic) connector is a specialized electrical connector used in solar power systems to connect solar panels, inverters, and other system components. These connectors are designed to ensure a secure, weather-resistant, and reliable connection in the challenging outdoor environments where solar installations are typically found.

Types of PV Connectors

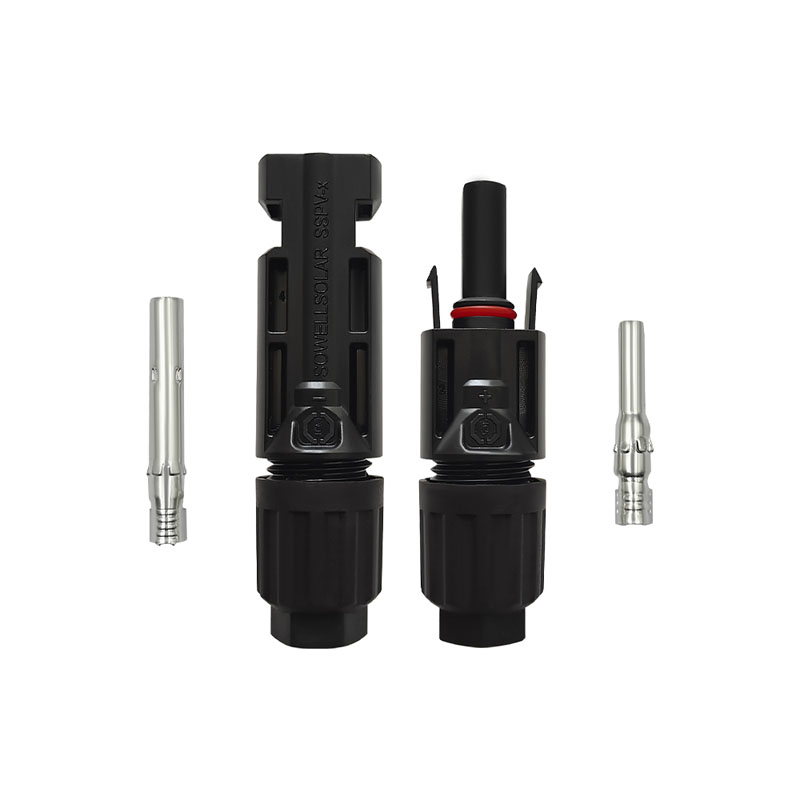

1. MC4 Connectors: The most commonly used type in modern solar installations. They are named after the manufacturer Multi-Contact (now Staubli) and can handle high current and voltage levels.

  - Features:

    - Snap-in lock for secure connection

    - IP67 waterproof rating

    - UV resistant

    - Rated up to 1000V or 1500V (depending on the model)

    - Current ratings typically around 30A

2. MC3 Connectors: An older version of solar connectors that have been largely replaced by MC4 connectors.

  - Features:

    - Slide-in lock

    - Lower current and voltage ratings compared to MC4

3. Tyco Solarlok: Another type of PV connector used in some solar installations.

  - Features:

    - Robust design

    - Waterproof and UV resistant

    - Rated for high voltage and current levels

Key Features and Benefits

- Weather Resistance: Designed to withstand harsh environmental conditions, including UV radiation, rain, and temperature fluctuations.

- Safety: Provides a secure and reliable connection, reducing the risk of electrical faults and ensuring safe operation of the solar power system.

- Ease of Installation: Typically, these connectors are designed for easy and quick installation, often requiring no special tools.

- Compatibility: Standardized design ensures compatibility with a wide range of solar panels and inverters.

Installation and Use

1. Crimping: The connector terminals are usually crimped onto the ends of the solar cables using a crimping tool to ensure a solid electrical connection.

2. Assembly: Once the terminals are crimped, they are inserted into the connector housing until they click into place.

3. Connection: Connectors from different solar panels are plugged together, and a click or snap sound usually confirms a secure connection.

4. Disconnection: Some connectors require a special tool to safely disconnect them, preventing accidental disconnections.

Standards and Compliance

- IEC 62852: This standard specifies the requirements and tests for PV connectors used in solar power systems.

- UL 6703: In the United States, PV connectors are often certified under this standard, ensuring they meet safety and performance criteria.

Maintenance and Inspection

Regular inspection of PV connectors is essential to ensure they remain secure and free from damage or corrosion. This helps maintain the efficiency and safety of the solar power system.

Common Issues

- Improper Installation: Can lead to poor connections, increasing the risk of faults and reducing system efficiency.

- Wear and Tear: Over time, connectors can degrade due to exposure to environmental conditions, necessitating periodic replacement or maintenance.

- Compatibility Issues: Using non-standard or incompatible connectors can cause connection problems and safety issues.
