Key components and steps involved in a structured wall pipe extrusion line

2023-12-02

A structured wall pipe extrusion line is a manufacturing process used to produce pipes with a structured, multi-layered wall design. This type of pipe is characterized by its reinforced and ribbed structure, which enhances its strength, rigidity, and load-bearing capabilities. Structured wall pipes are commonly used in applications such as drainage, sewer systems, cable protection, and stormwater management. Here are the key components and steps involved in a structured wall pipe extrusion line:

1. Raw Material Handling:

  - The process begins with the handling of raw materials, typically high-density polyethylene (HDPE) or other suitable thermoplastic resins. These materials are often in the form of pellets or powder.

2. Material Conveyance and Drying:

  - The raw material is conveyed to a drying system to remove any moisture. Drying is critical to ensuring the quality of the final product and the bonding of multiple layers.

3. Extruders for Multiple Layers:

  - Unlike single-layer pipe extrusion, structured wall pipe extrusion involves multiple extruders to create the different layers of the pipe. Each extruder is responsible for extruding a specific layer of the pipe wall.

4. Multi-Layer Die Head:

  - The molten plastic material from each extruder is brought together in a multi-layer die head. The die head shapes the molten material into the desired pipe profile with a structured, ribbed design.

5. Cooling and Sizing:

  - The extruded pipe passes through a cooling system, which may include water tanks or air cooling, to solidify the molten plastic. Sizing tools are used to control the outer dimensions of the structured wall pipe.

6. Forming the Structure:

  - The structured or ribbed structure is formed during the extrusion process. This reinforcement enhances the pipe's structural integrity, making it suitable for various applications, including underground installations.

7. Traction and Cutting:

  - A traction system pulls the structured wall pipe through the structured wall pipe extrusion line at a controlled speed. A cutting system then cuts the pipe to the desired length.

8. Quality Control:

  - Throughout the process, quality control measures are implemented to ensure the final product meets specifications. This includes monitoring the dimensions, rib design, and overall structural integrity.

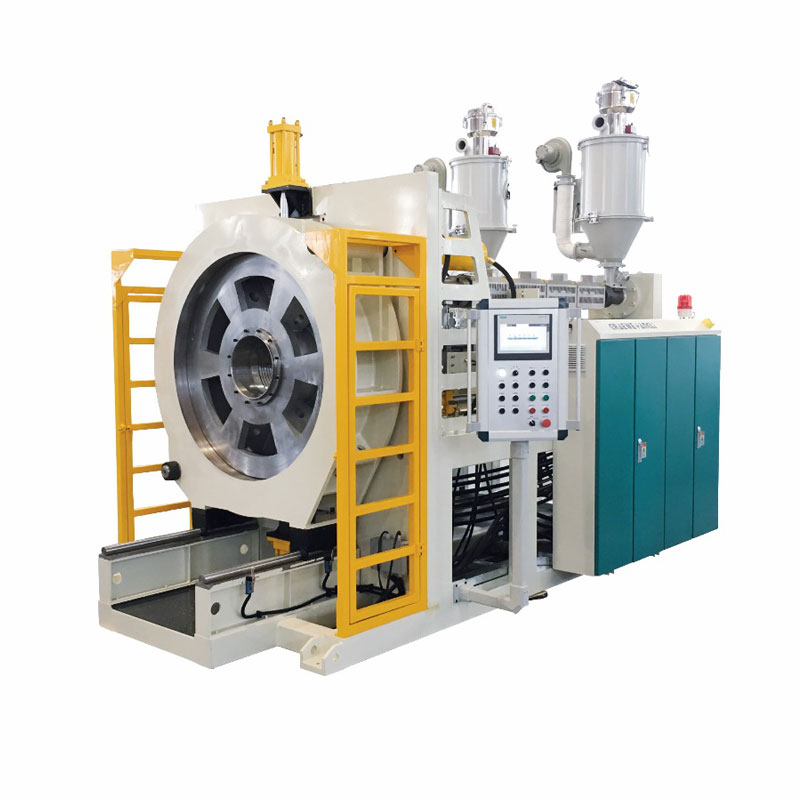

9. Socketing and End Forming (Optional):

  - As with solid wall pipes, structured wall pipes may undergo socketing or other end-forming processes to create specialized pipe ends for specific applications.

10. Packaging and Storage:

  - The finished structured wall pipes are packaged and prepared for shipping or storage. Proper packaging ensures the pipes are protected during transportation and storage.

Structured wall pipes offer advantages such as lightweight construction, durability, and ease of installation, making them suitable for a variety of infrastructure and construction projects. The extrusion process allows for the customization of the pipe's structural design based on specific application requirements.
