How a tumble shot blasting machine typically works

2024-03-16

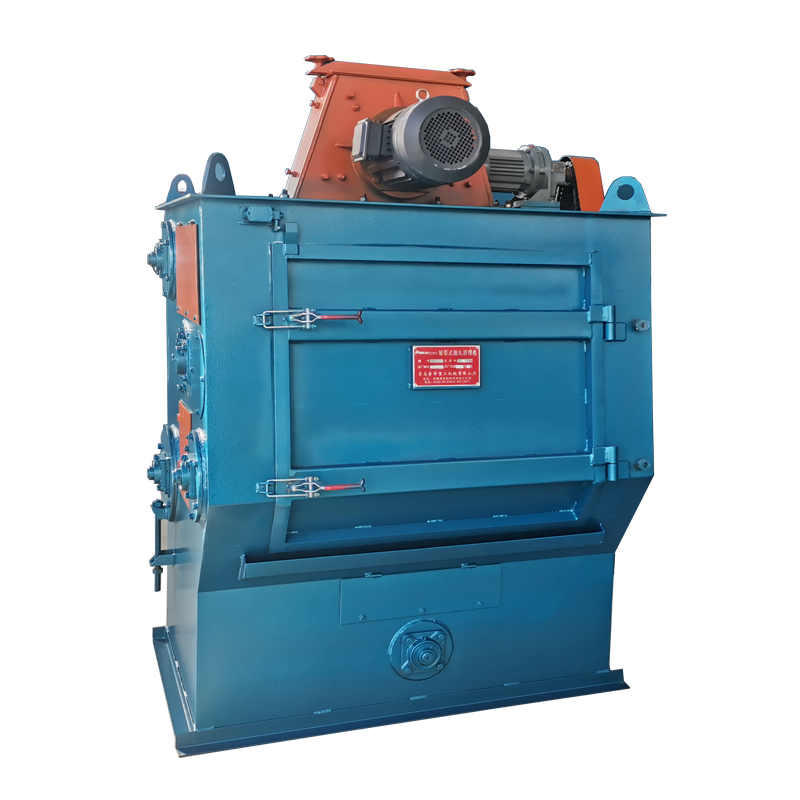

A tumble shot blasting machine, also known as a tumble belt shot blasting machine, is a type of industrial equipment used for surface preparation, cleaning, and finishing of metal parts or components. It is commonly used in industries such as automotive, aerospace, foundry, and manufacturing.

Here's how a tumble shot blasting machine typically works:

1. Loading: The parts or components to be blasted are loaded onto a perforated belt or conveyor system inside the machine. The perforations allow the shot blasting media (such as steel shot, grit, or abrasive particles) to circulate and reach all surfaces of the parts.

2. Blasting Chamber: Once loaded, the parts enter the blasting chamber, where they are subjected to a high-velocity stream of abrasive media propelled by blast turbines or wheels. These turbines or wheels are strategically positioned around the chamber to ensure uniform coverage of the parts.

3. Blasting Process: As the belt conveyor moves, the parts tumble and rotate within the blasting chamber, exposing all surfaces to the abrasive media. The kinetic energy of the media removes surface contaminants, scale, rust, paint, or other unwanted coatings from the parts, leaving behind a clean and uniformly roughened surface.

4. Dust Collection: During the blasting process, dust, debris, and spent abrasive media are generated. A dust collection system within the machine captures and removes these contaminants from the blasting chamber, maintaining a clean working environment and preventing the accumulation of debris.

5. Media Recycling: Many tumble shot blasting machines feature a media recovery and recycling system. This system collects the spent abrasive media, separates it from the debris, and recycles it for reuse in subsequent blasting cycles. This not only reduces waste but also helps minimize operating costs.

6. Unloading: After the blasting process is complete, the parts exit the blasting chamber and are unloaded from the machine. Depending on the specific application, additional post-processing steps such as rinsing, drying, or coating may be required before the parts are ready for further assembly or finishing.

Tumble shot blasting machines are versatile and efficient tools for preparing metal parts for subsequent manufacturing processes, such as painting, coating, welding, or assembly. They offer advantages such as uniform surface finish, improved adhesion of coatings, and increased productivity compared to traditional manual surface preparation methods.
