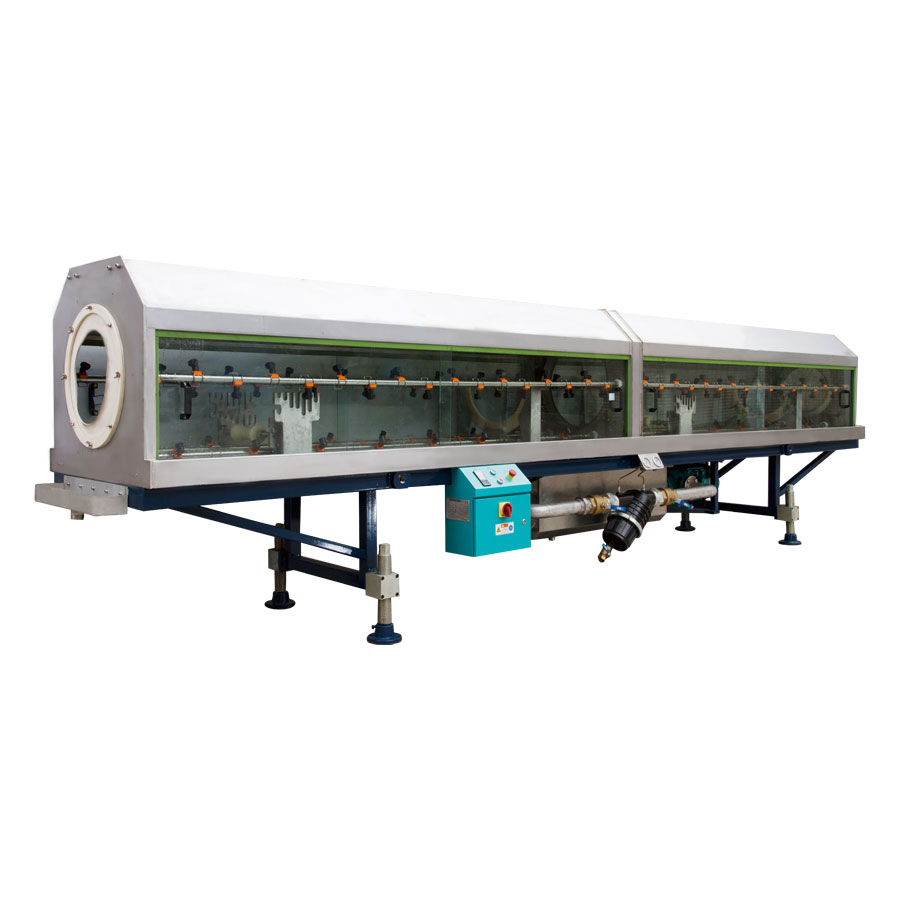

Functions of a spray cooling water tank

A spray cooling water tank is a component used in the plastic extrusion process, particularly in the production of plastic pipes, profiles, and other extruded products. The primary function of the spray cooling water tank is to rapidly cool and solidify the extruded material after it has been shaped and sized. This process is crucial for setting the final dimensions of the product and enhancing its structural properties. Here's an overview of the features and functions of a spray cooling water tank:

1. Purpose:

  - The main purpose of the spray cooling water tank is to cool the extruded plastic material quickly and uniformly. This rapid cooling process helps in solidifying the material, setting its dimensions, and preventing deformation.

2. Key Components:

  - Water Spray System: The tank is equipped with a water spray system that directs a fine mist or spray of water onto the surface of the extruded material. The spray helps dissipate heat rapidly.

  - Water Circulation System: A system for circulating water within the tank ensures that the cooling water remains at the desired temperature. The water may be recirculated to minimize waste.

  - Adjustable Nozzles: The spray nozzles are often adjustable to control the direction, intensity, and pattern of the water spray, allowing for customization based on the specific requirements of the extruded product.

  - Tank Design: The tank is designed to allow the extruded material to pass through it while being subjected to the cooling water spray. It may have multiple chambers or sections to provide sufficient cooling time.

3. Operation:

  - The spray cooling water tank is positioned immediately downstream of the calibration and haul-off equipment in the extrusion line.

  - As the extruded plastic material exits the haul-off unit or calibration system, it enters the spray cooling water tank.

  - The water spray system directs a fine mist or spray of water onto the surface of the extruded material. This rapid cooling process solidifies the material and sets its dimensions.

  - The extruded product continues to travel through the tank, undergoing further cooling until it reaches a temperature suitable for cutting or coiling.

4. Advantages:

  - Rapid Cooling: The spray cooling water tank allows for rapid and uniform cooling of the extruded material, preventing deformations and ensuring consistent product dimensions.

  - Enhanced Structural Properties: The controlled cooling process contributes to the development of desired structural properties in the final product.

  - Minimization of Internal Stresses: Proper cooling helps minimize internal stresses within the extruded material, improving the overall quality of the product.

5. Applications:

  - Spray cooling water tanks are widely used in the production of plastic pipes, profiles, and other continuous plastic products where precise dimensions and structural integrity are critical.

In summary, the spray cooling water tank is a vital component in the plastic extrusion process, contributing to the rapid and controlled cooling of the extruded material. This process is essential for setting the final dimensions and enhancing the structural properties of the extruded product.
