Design and Construction of Washing Machine Injection Mould

A washing machine injection mold is a specialized tool used in the manufacturing process of washing machines to create plastic components through injection molding. Here are the key aspects and functionalities of a washing machine injection mold:

Functionality and Operation

1. Injection Molding Process

  - Injection Mold: A metal mold typically made of steel or aluminum that is precision-machined to form cavities and channels.

  - Plastic Injection: Plastic pellets or granules are melted and injected under pressure into the mold cavities.

  - Cooling: The plastic material cools and solidifies within the mold, taking the shape of the mold cavity.

  - Ejection: Once cooled, the mold opens, and the finished part is ejected, ready for further processing or assembly.

2. Components Produced

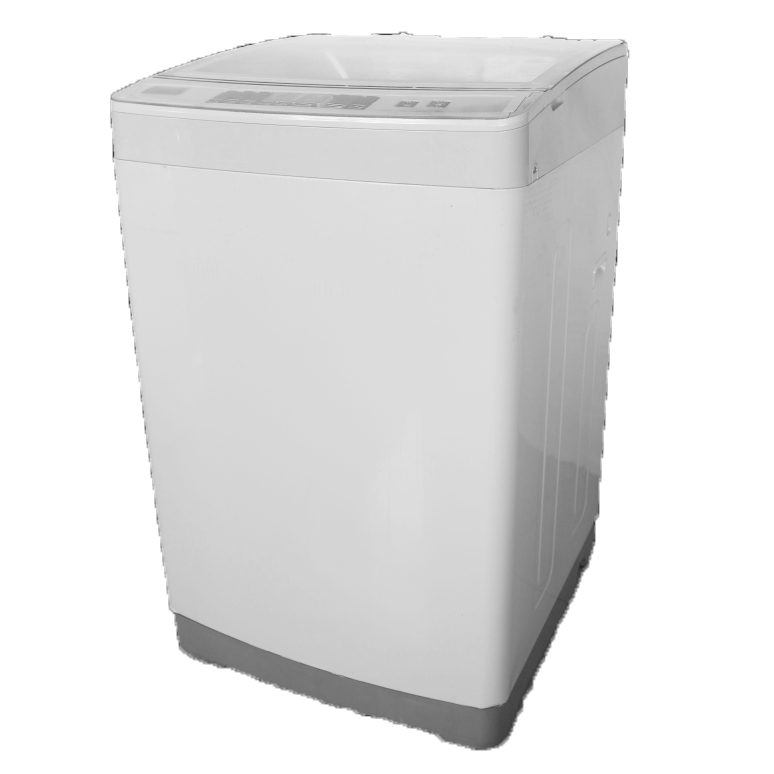

  - Housings and Panels: Main outer structures of the washing machine, including front and rear panels, control panels, and housing components.

  - Internal Components: Parts such as detergent dispensers, door seals, and other intricate plastic components used within the washing machine.

Design and Construction

1. Material Selection

  - Mold Material: High-quality steel or aluminum alloys chosen for durability, thermal conductivity, and resistance to wear and corrosion.

  - Surface Finish: Precision machining and polishing of mold surfaces to ensure smooth finish and dimensional accuracy of molded parts.

2. Complexity and Precision

  - Molds are designed with intricate details and features to accurately reproduce the desired shape and function of the plastic components.

  - CNC (Computer Numerical Control) machining and EDM (Electrical Discharge Machining) are often used to create precise mold cavities and complex geometries.

Considerations for Washing Machine Injection Molds

- Tooling Cost: Injection molds are a significant investment due to the precision engineering and durability required for high-volume production.

- Part Design Optimization: Collaborative effort between designers and mold engineers to optimize part designs for manufacturability and moldability.

- Production Volume: Injection molds are suitable for high-volume production runs, ensuring consistent quality and cost-effectiveness over large quantities.

Manufacturing Process

- Injection Molding Machine: Used to inject molten plastic material into the mold cavities under controlled pressure and temperature conditions.

- Cycle Time: The time taken for injection, cooling, and ejection cycles determines production efficiency and throughput.

- Quality Control: Inspection and testing of molded parts to ensure dimensional accuracy, surface finish, and functionality meet design specifications.

Summary

A washing machine injection mold is a critical tool in the manufacturing process, enabling the production of precise plastic components used in washing machines. These molds are engineered for durability, precision, and efficiency to meet the demanding requirements of mass production in appliance manufacturing. Advanced mold design and manufacturing techniques ensure that molded parts are consistent in quality, performance, and reliability, contributing to the overall functionality and longevity of washing machine products.
