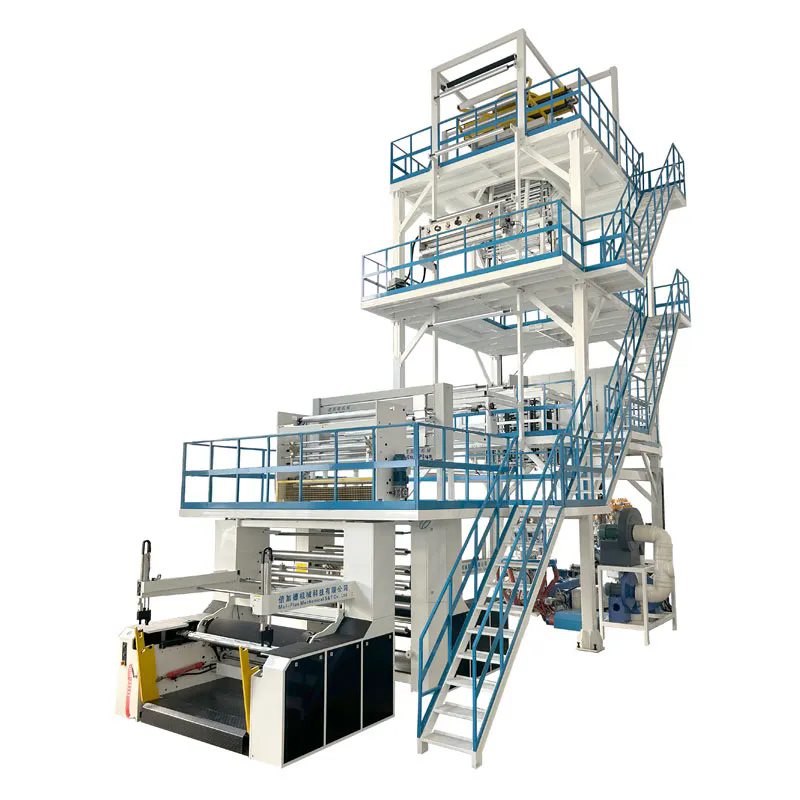

A three-layer co-extrusion blown film machine is a type of equipment used in the manufacturing of multi-layer plastic films. These films are commonly used in packaging, agricultural, and industrial applications due to their enhanced properties and performance compared to single-layer films. Here’s an in-depth look at the features, benefits, operation, and considerations associated with a three-layer co-extrusion blown film machine:
Features
1. Co-Extrusion Technology:
- Multiple Layers: Capable of producing films with three distinct layers, each layer having different properties or materials.
- Layer Combinations: Allows for combinations of different polymers to achieve desired film characteristics such as barrier properties, strength, or flexibility.
2. Extrusion Units:
- Three Extruders: Equipped with three separate extruders for feeding the different polymer materials into the die.
- Material Handling: Each extruder handles a specific material layer, allowing for precise control over layer thickness and composition.
3. Blown Film Die:
- Multi-Layer Die: The die is designed to combine the three polymer streams into a single film with distinct layers.
- Uniformity: Ensures that the layers are evenly distributed and adhered to each other during the extrusion process.
4. Cooling System:
- Air Cooling: Uses an air ring to cool the film as it is blown and solidified, ensuring uniform thickness and quality.
- Temperature Control: Features temperature control systems to maintain optimal cooling conditions and film quality.
5. Winding System:
- Film Winder: Includes a winding system for collecting and spooling the finished film into rolls.
- Tension Control: Equipped with tension control mechanisms to ensure that the film is wound evenly and without wrinkles.
Benefits
1. Enhanced Film Properties:
- Barrier Properties: Multi-layer films can provide improved barrier properties against moisture, gases, and other contaminants.
- Strength and Durability: The combination of different materials can enhance the strength and durability of the film.
2. Cost Efficiency:
- Material Savings: Allows the use of less expensive or less desirable materials for inner layers, while using higher-quality materials only where necessary.
3. Versatility:
- Customizable: Capable of producing films with various combinations of materials and properties to meet specific application requirements.
- Wide Range of Applications: Suitable for a variety of uses including food packaging, agricultural films, and industrial liners.
4. Quality Control:
- Consistent Thickness: Provides consistent film thickness and layer distribution, resulting in high-quality final products.
- Reduced Waste: Improved process control and material efficiency lead to reduced production waste.
Operation
1. Material Feeding:
- Loading: Load the polymer pellets or resins into the respective extruders for each layer.
- Heating: The extruders heat the materials to their melting points, preparing them for extrusion.
2. Extrusion Process:
- Layer Formation: Each extruder feeds its material into the multi-layer die, where the layers are combined to form the film.
- Blowing: The molten polymer is blown into a bubble shape, which is then cooled to solidify into a film.
3. Cooling:
- Air Ring: The film is cooled using an air ring, which helps to solidify and stabilize the film as it exits the die.
- Cooling Efficiency: Proper cooling is essential for maintaining film quality and preventing defects.
4. Winding:
- Collecting Film: The finished film is collected on a winding system, where it is rolled into large reels.
- Inspection: Inspect the film for any defects or inconsistencies before final packaging.
Considerations
1. Material Compatibility:
- Layer Bonding: Ensure that the materials used in each layer are compatible and adhere well to each other to prevent delamination.
2. Machine Calibration:
- Extruder Settings: Properly calibrate the extruders and die to achieve the desired layer thickness and film properties.
- Cooling Parameters: Adjust cooling parameters to ensure uniform film quality.
3. Maintenance:
- Regular Inspection: Perform regular inspections and maintenance of the extruders, die, and cooling system to ensure optimal performance.
- Cleaning: Clean the machine components regularly to prevent contamination and maintain product quality.
4. Safety:
- Operator Training: Ensure that operators are properly trained in the use of the machine and safety procedures.
- Protective Equipment: Use appropriate protective equipment and follow safety guidelines to prevent accidents and injuries.
Applications
1. Packaging:
- Food Packaging: Used for producing films for food packaging, offering protection against contamination and extending shelf life.
- Consumer Goods: Suitable for packaging various consumer products with specific barrier and strength requirements.
2. Agriculture:
- Mulch Films: Provides films for agricultural mulch, helping to control weeds and retain soil moisture.
- Greenhouse Films: Used in greenhouses to provide optimal growing conditions for plants.
3. Industrial:
- Protective Liners: Produces liners for industrial applications, offering protection and durability in harsh environments.
- Shrink Films: Suitable for producing shrink films used in various industrial packaging applications.
Conclusion
A three-layer co-extrusion blown film machine is a versatile and advanced piece of equipment that enables the production of high-quality multi-layer films. By combining different polymers, these machines offer enhanced film properties, cost efficiency, and flexibility for a wide range of applications. Proper operation, maintenance, and consideration of material compatibility are essential for achieving optimal performance and quality in the final product.
