Carrier Roller

Carrier Roller

The carrier roller is one of the four wheels in the chassis of tracked construction machinery, mainly composed of roller shell, shaft,oil seal, bushing bronze, collar, O-ring.The materials for the carrier roller shell are generally 40Mn2 or50Mn. The main process is forging, mechanical processing, an......

Send Inquiry

Product Description

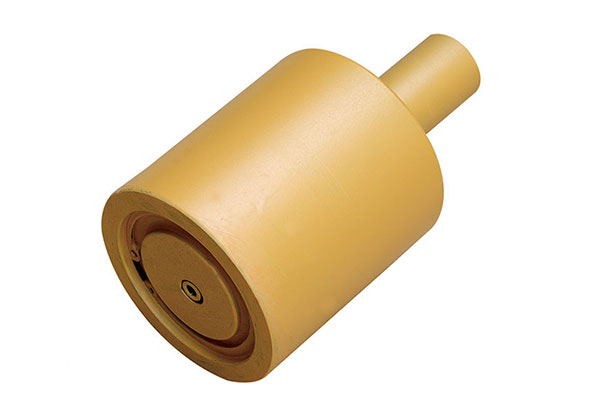

The carrier roller is one of the four wheels in the chassis of tracked construction machinery, mainly composed of roller shell, shaft,oil seal, bushing bronze, collar, O-ring.

The materials for the carrier roller shell are generally 40Mn2 or50Mn. The main process is forging, mechanical processing, and then heat treatment. The hardness of the wheel surface after quenching should reach HRC52-58 to increase the wear resistance of the wheel surface. The material of the carrier roller shaft is mostly 45# round steel, and the machining accuracy requirements are relatively high. Generally, CNC machine tools are required to process it to meet the requirements. After processing, quenching treatment is also required, and the hardness reaches around HRC52-56.

The carrier roller is located above the X frame to maintain the linear motion of the track. If the carrier roller is damaged, it will cause the track not maintain a straight line.

The function of the carrier roller is to support the track, prevent excessive sagging of the track, and provide a certain degree of tension on the track to reduce the vibration phenomenon of the track during movement. Simultaneously guide the direction of movement of the upper track and prevent the track from sliding sideways.

Product Parameter (Specification)

The carrier roller are strictly produced in accordance with production requirements. The material selection and assembly of the carrier roller comply with the drawings, and every parameter and indicator of the product is rigorously measured and tested.

The following is the product specification table for the carrier roller:

Product nameCarrier roller
Roller shell material50Mn/40Mn2
ColorBlack or yellow
Surface of hardnessHRC52-58
Shaft material45#/40Cr
 Warranty periodOne year
Case depth5-10mm
Delivery period30day/45-60day(negotiable)
Using time1000hour

Product features: Stable structure,shaft and bushing bronze is standard thickness and length. The copper layer is not easily peeled off after rolling, reaching over 3.5mm. Using high-quality bimetallic bushing bronze. Reliable sealing, wear-resistant roller shell, and low rolling resistance.
Roller shell: forging, rough turning, drilling oil holes, heat treatment, precision machining,, drilling collar installation holes, protective welding, and warehousing;


Shaft: cutting, rough turning, drilling oil holes, heat treatment, precision grinding, and warehousing;Assembly process: cleaning and polishing, assembly, pressure testing, refueling, painting, packaging and warehousing.

Each process undergoes strict inspection, with independent processing workshops and precision instruments, including specialized magnetic particle inspection machines to ensure that there are no cracks in the roller shell and the overall quality of the carrier roller.

Part number

The carrier rollers are divided into different specifications and sizes, and are used in different models of tracked construction machinery chassis.
